Features a 15.0 AMP high-torque motor with the power to cut pressure-treated lumber and hardwoods. Rack and pinion telescoping fence rails make fence adjustments fast, smooth, and accurate. Patented material support, can be used for narrow rip cuts. 28-1/2" of rip capacity easily cuts a variety of larger shelving and t
Features a 15.0 AMP high-torque motor with the power to cut pressure-treated lumber and hardwoods. Rack and pinion telescoping fence rails make fence adjustments fast, smooth, and accurate. Patented material support, can be used for narrow rip cuts. 28-1/2″ of rip capacity easily cuts a variety of larger shelving and trim material. On board Storage provides easy access to the Blade Guard Assembly, fence, riving knife, push stick, miter gage, wrenches, and cord wrap when not in use. Compact folding stand. Blade Guard Assembly allows for tool free adjustments of the guard for different application. Flip over fence, allows for narrow rip cuts. Telescoping fence rails retract to create a small, portable package.

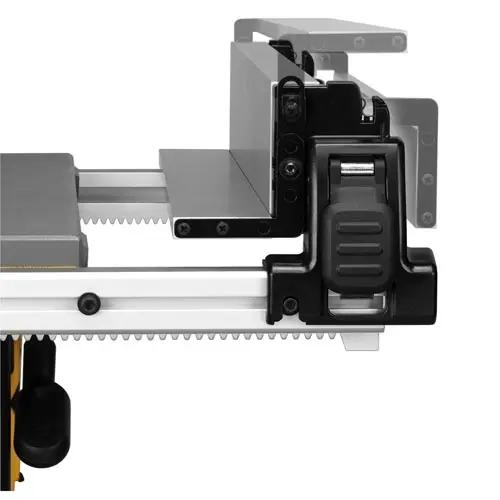

- Rack and pinion telescoping fence rails make fence adjustments fast, smooth, and accurate
- Patented material support, can be used for narrow rip cuts
- 28-1/2″ of rip capacity easily cuts a variety of larger shelving and trim material
- On board Storage provides easy access to the Blade Guard Assembly, fence, riving knife, push stick, miter gage, wrenches, and cord wrap when not in use
- Compact folding stand
- Blade Guard Assembly allows for tool free adjustments of the guard for different application
- Flip over fence, allows for narrow rip cuts
- Telescoping fence rails retract to create a small, portable package
- Features a 15.0 AMP high-torque motor with the power to cut pressure-treated lumber and hardwoods
- 2-1/2″ Dust Collection Port easily connects to a vacuum for efficient dust extraction
- 3-1/8″ depth of cut at 90 and 2-1/4″ at 45
- 21-7/8″ x 26 – 3/8″ table provides superior material support
Specifications:
- Amps: 15.0Amps
- Horsepower: HP
- No Load Speed: 4800 RPM
- Blade Diameter: 10″
- Arbor Size: 5/8″
- Dust Port Diameter: 2-1/2″
- Depth of Cut at 90°: 3-1/8″
- Depth of Cut at 45°: 2-1/4″
- Max Rip To Right Of Blade: 28-1/2″
- Max Rip To Left Of Blade: 16-1/2″
- Max Width of Dado: 13/16″
Includes:
- 10″ 24-Tooth Carbide Blade
- Folding Table saw stand
- Miter Gauge
- Push Stick
- Folding Stand
- Rip Fence
- 2x Blade Wrenches
- Blade Guard Assembly
WARNING: Some dust created by power sanding sawing grinding drilling and other construction activities contains chemicals known to the State of California to cause cancer birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints crystalline silica from bricks and cement and other masonry products and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area and work with approved safety equipment such as those dust masks that are specially designed to filter out microscopic particles. For more information go to www.P65Warnings.ca.gov
Specifications
MFR: DWE7490X SKU: 11395747 UPC: 885911302326 Brand: DeWalt Length: 31 Width: 21 Height: 31
